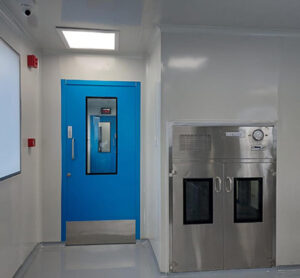

A dynamic pass box is an advanced contamination control device used to transfer materials between two cleanroom areas of different cleanliness levels. Unlike static pass boxes, a dynamic pass box in clean room environments features an active HEPA-filtered air circulation system that continuously purges airborne particles.
Step 1: Material Placement
An operator on the dirty side (lower cleanliness area) places the material inside the pass box through the first door.
Step 2: Door Interlocking Activation
The electromagnetic interlocking system prevents both doors from opening simultaneously, ensuring unfiltered air never enters the clean side.
Step 3: Auto-Cleaning Cycle (Air Shower Effect)
The dynamic pass box controller activates the blower motor, drawing air through the pre-filter and HEPA filter. HEPA-filtered air is circulated inside the chamber at 0.45-0.75 m/s velocity, removing particles from material surfaces.
Step 4: UV Sterilization (Optional)
If equipped with UV light, the material is exposed to germicidal UV-C radiation for a preset duration (typically 5-15 minutes), killing surface microorganisms.
Step 5: Material Transfer
The operator on the clean side opens the second door only after the interlock confirms the first door is closed and the cleaning cycle is complete.
Step 6: Material Retrieval
The material is safely retrieved on the clean side without any contamination transfer.
Understanding dynamic pass box specifications helps you select the right equipment for your cleanroom application. Our pass boxes meet ISO 14644 and GMP standards.
| Model | External Size (WxDxH) | Internal Size (WxDxH) | Typical Application |
|---|---|---|---|
| DPB-500 | 680 x 590 x 1100 mm | 500 x 500 x 500 mm | Small samples, documents |
| DPB-600 | 780 x 690 x 1200 mm | 600 x 600 x 600 mm | Lab equipment, glassware |
| DPB-800 | 980 x 890 x 1400 mm | 800 x 800 x 800 mm | Material batches, cartons |
| DPB-900 | 1080 x 990 x 1500 mm | 900 x 900 x 900 mm | Large equipment, drums |
| Custom Size | As per requirement – Get Quote | ||
| Parameter | Standard Specification | Custom Options |
|---|---|---|
| Construction Material | SS 304 / SS 316 | Combination (SS inside, GI outside) |
| HEPA Filter Efficiency | 99.995% at 0.3 microns (H14 grade) | ULPA filter for ISO Class 3-4 |
| Pre-Filter Efficiency | 95% down to 5 microns (EU-4 rating) | Higher grade pre-filter |
| Air Velocity | 0.45 ± 0.05 m/s (90 ± 10 fpm) | 0.45 to 0.75 m/s adjustable |
| Noise Level | ≤ 65 dB (quieter than normal conversation) | Low-noise blower option |
| Door Interlocking | Electromagnetic with buzzer | Mechanical / Solenoid lock |
| Dynamic Pass Box Controller | Soft-touch control panel with timer | PLC-based / Digital display |
| UV Light | 15W / 30W germicidal UV-C lamp | Timer-controlled / Dual UV lamps |
| Power Supply | 220/230V Single Phase 50 Hz | |
| Cleanliness Level | ISO Class 5 (ISO 14644-1:1999) | |
| DOP Test Ports | Provided for HEPA filter integrity testing | |
| Accessories | Hour meter, Magnehelic pressure gauge, LED light, Buzzer | |
For high-efficiency air filtration, explore our range of Air Filters including pre-filters, HEPA filters, and Mini Pleat HEPA filters.
Understanding the static and dynamic pass box difference is critical for selecting the right equipment for your cleanroom application.
| Feature | Static Pass Box | Dynamic Pass Box |
|---|---|---|
| Airflow System | No active airflow (static) | HEPA-filtered forced air circulation |
| Blower Motor | Not present | Dynamically balanced motor-blower |
| Contamination Control | Door interlocking + UV sterilization | HEPA filtration + interlocking + UV + air shower effect |
| Air Purging / Self-Cleaning | Not available | Yes – auto-cleaning cycle removes particles |
| Particle Removal Efficiency | Surface only (UV) | Airborne + surface (HEPA + UV) |
| Cleanliness Level Achieved | ISO Class 6-8 | ISO Class 5 and above |
| Price Range | ₹18,000 – ₹85,000 | ₹40,000 – ₹1,50,000+ |
| Energy Consumption | Very low (UV + lights only) | Moderate (blower motor runs) |
| Best For | ISO Class 7-8, non-sterile transfers | ISO Class 5-6, sterile/aseptic transfers |
| Typical Applications | Documents, small samples, non-critical | Sterile media, critical components, aseptic processing |
Learn more about Static Pass Box for ISO Class 7-8 cleanroom applications.
Recommendation: For pharmaceutical sterile manufacturing and ISO Class 5 environments, a dynamic pass box is required. For general cleanroom material transfer in ISO Class 7-8, a static pass box is sufficient and more economical.
Based on market analysis from leading dynamic pass box manufacturers, here is a comprehensive price guide. Prices are ex-factory and exclusive of GST.
| Size / Model | Material | Features | Price Range (INR) |
|---|---|---|---|
| 500x500x500 mm | SS 304 | HEPA filter, UV, interlock | ₹40,000 – ₹55,000 |
| 600x600x600 mm | SS 304 | HEPA + UV + magnehelic gauge | ₹55,000 – ₹75,000 |
| 800x800x800 mm | SS 304 | Complete electrical interlocking | ₹70,000 – ₹95,000 |
| 900x900x900 mm | SS 304 | PLC controller + digital display | ₹85,000 – ₹1,20,000 |
| SS 316 Pharma Grade | SS 316 | All features + FDA compliant | ₹1,00,000 – ₹1,50,000+ |
| Custom Size | As required | As per drawing | Get Quote |
Request a custom quote: Call +91 8484 836 337 or email sales@peterairs.com
Proper dynamic pass box installation is critical for optimal performance and compliance with cleanroom standards.
Step 1: Wall Preparation
Cut the required opening in the cleanroom wall. Ensure the opening is level, square, and free from debris.
Step 2: Position the Pass Box
Insert the dynamic pass box into the wall opening. Ensure it is flush with both sides of the wall and level in all directions.
Step 3: Secure the Unit
Use mounting brackets or flanges to secure the pass box to the wall structure. Ensure no movement or vibration.
Step 4: Seal All Gaps
Apply pharmaceutical-grade silicone sealant around all gaps between the pass box and wall. This prevents air leakage and maintains pressure differential.
Step 5: Electrical Connection
Connect the unit to 220/230V single phase power supply. Ensure proper earthing. The dynamic pass box controller should be easily accessible.
Step 6: HEPA Filter Installation (if shipped separately)
Install the HEPA filter in its housing. Ensure proper sealing and gasket compression.
Step 7: Test All Functions
Step 8: Perform DOP Test (if required)
For pharmaceutical applications, conduct HEPA filter integrity testing using DOP/PAO challenge method.
We recommend professional installation by trained technicians to ensure proper sealing, electrical safety, and compliance with regulatory requirements.
A dynamic pass box in clean room environments is essential for industries requiring strict contamination control.
1. Active Contamination Control
HEPA-filtered air circulation continuously removes airborne particles, achieving ISO Class 5 cleanliness during material transfer.
2. Surface Sterilization
UV light kills up to 99.9% of surface microorganisms before materials enter critical areas.
3. Regulatory Compliance
Helps pharmaceutical companies meet GMP, Schedule M, and USFDA requirements for aseptic material transfer.
4. Operational Efficiency
Auto-cleaning cycle ensures consistent contamination control without manual intervention.
5. Filter Monitoring
Magnehelic gauge provides real-time pressure drop reading, alerting when HEPA filter replacement is needed.
6. Low Noise Operation
Dynamically balanced motor-blower ensures ≤65 dB noise level – quieter than normal conversation.
As trusted dynamic pass box manufacturers, Peter Air Systems brings years of cleanroom equipment expertise to every project.
We manufacture complete dynamic pass boxes at our Mumbai facility. No middlemen. Factory-direct pricing saves you 15-20% compared to imported alternatives.
All our pass boxes are fabricated using high-grade stainless steel with mirror or satin finish. Corrosion-resistant, easy to sanitize, and GMP compliant.
We build to your exact specifications. Any size from 500mm to 1200mm, any material SS 304/SS 316, any controller type standard timer or PLC-based.
Our PLC-based controller features digital display for air velocity, filter status, and UV timer. Soft-touch interface for easy operation.
We serve all major cities including Mumbai, Delhi, Bengaluru, Chennai, Hyderabad, Pune, and Ahmedabad with on-site installation support.
Comprehensive warranty on manufacturing defects. Annual maintenance contracts available for HEPA filter replacement, interlock testing, and electrical checks.
Our dynamic pass boxes meet ISO 14644 and GMP standards, making them suitable for pharmaceutical and healthcare applications.
All units include DOP test ports for annual HEPA filter integrity testing – mandatory for pharmaceutical compliance.
We also manufacture Other Products including Laminar Work Stations, Garment Cabinets, and Reverse Laminar Flow Units.
Daily Checks (by User):
Weekly Checks:
Monthly Checks:
Quarterly Checks:
Annually (Professional Certification Required):
Free Installation & Commissioning
Our trained technicians install and certify every dynamic pass box before handover.
Operator Training
We train your staff on proper operation, cleaning procedures, daily checks, and emergency protocols.
Annual Maintenance Contract (AMC)
Spare Parts Availability
All parts available from our Mumbai warehouse for same-day dispatch:
Pan-India Service Network
Response within 48 hours in major cities including Mumbai, Delhi, Bengaluru, Chennai, Hyderabad, Pune, Ahmedabad, Kolkata, and Lucknow.
1 Year Comprehensive Warranty
Covers manufacturing defects, HEPA filter performance, blower motor, electrical components, controller, and door interlocking mechanism. Extended warranty options available on request.
To meet industry standards, we implement rigorous quality control processes, guaranteeing each box’s compliance and reliability. Additionally, we offer both standard sizes and customizable options tailored to your facility’s specific needs. Whether you work in pharmaceuticals, biotechnology, or research laboratories, our Dynamic Pass Boxes enhance operational efficiency and maintain sterile conditions essential for safety.
For a solution that prioritizes cleanliness and operational efficiency, contact Peter Air Systems today. Our dedicated team is ready to provide safe, reliable, and high-performance pass boxes to elevate your facility’s standards. Discover how our solutions can improve safety, quality, and productivity in your controlled environment.
| TECHNICAL PARAMETERS | |
|---|---|
| Construction Stainless Steel | 304/316/316 L or combination |
| Door | Solid door w/ mechanical or electrical interlocked |
| Window | Tempered/Toughen Glass |
| UV Lamp | Yes |
| HEPA Filter | Yes |
| Suction Filter | Stainless Steel, 95% down to 5 µ Efficiency (EU-4 Rating.) |
| Supply Filter | Aluminum, 99.999% down to 0.3 u (EU-14 Rating.) |
| Blower | Dynamically balanced Motor-blower with suspension arrangement |
| Air Velocity | 0.45 + (-) 0.05 mps |
| Noise | <78 dB |
| Power Supply | 220/230 Volts Single Phase 50Hz |
| Accessories | Hour meter, Magnehelic/Minihelic Pressure Gauge |
| Electricals | Hour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator lamps, ON/OFF Switch for blower |
| DOP Test Port | Yes |
| Cleanliness | ISO Class 5 (ISO 14644-1: 1999(E)) |
| Certifications | ISO |
Your cleanroom requires the highest level of contamination control for material transfer. Peter Air Systems delivers high-quality dynamic pass boxes with H14 HEPA filtration, electromagnetic door interlocking, UV sterilization, and ISO Class 5 cleanliness.
Choose Peter Air Systems for pan-India installation, annual certification, and reliable after-sales support.
Call +91 8484 836 337 for a free quote or technical consultation.
